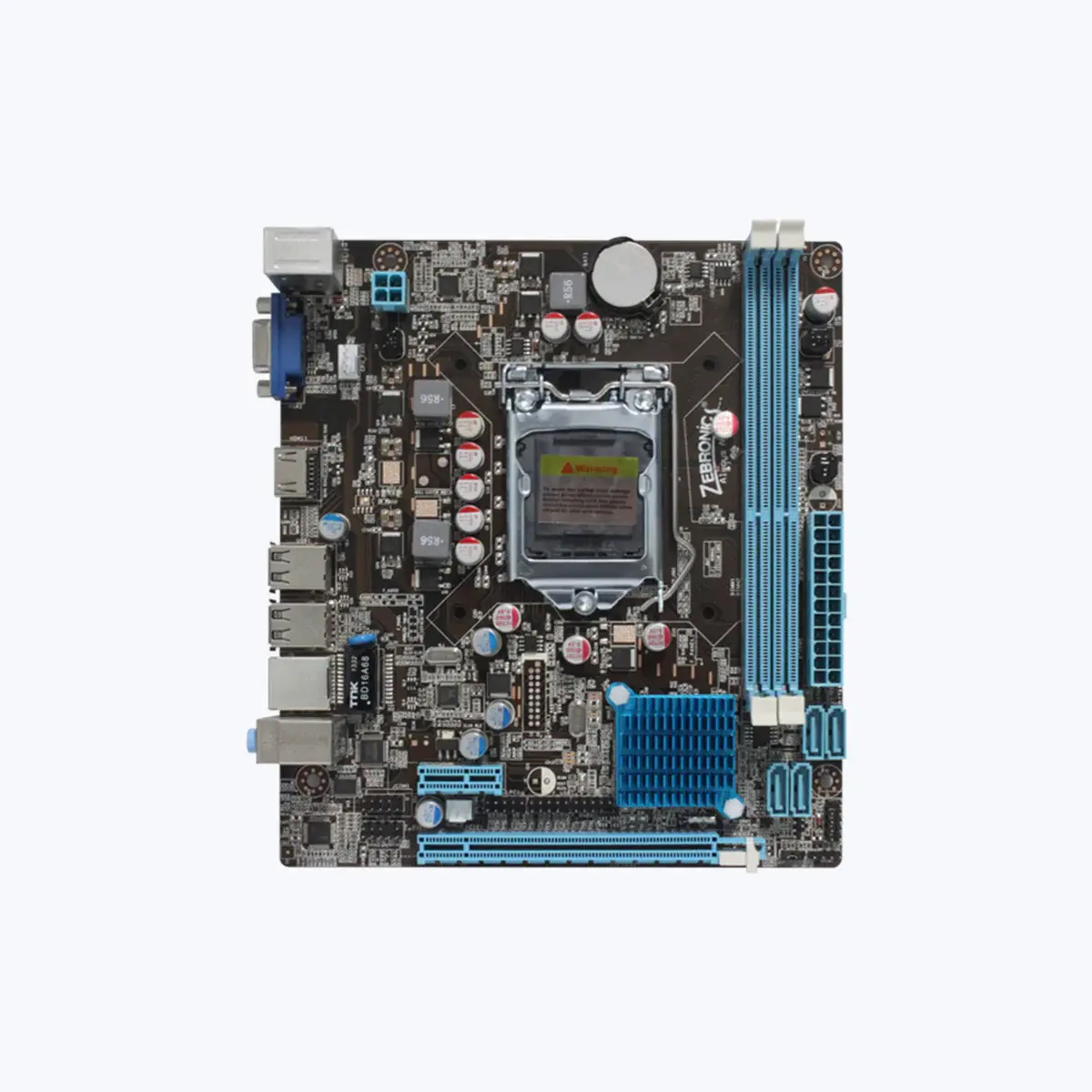

Zebronics H61, Socket 1155

SPECIFICATION

• Processor support    Supports Intel® i7/i5/i3/Pentium/Celeron processors in LGA1155
• Chipset    Intel® H61Chipset
• Memory support    2 DDR3 dual-channel slots, Support DDR3 1066/1333/1600MHz memory
• LAN    Supports Realtek 8106E 10/100 Mbps
• Audio    Realtek 662 3xAudio Jacks for 6 channel High definition audio

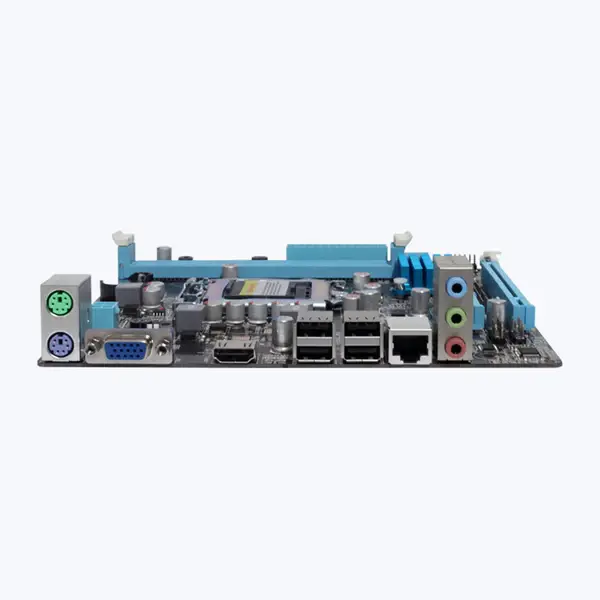

• Back panel    1 PS/2 mouse/keyboard port, 1 VGA port, 1HDMI port, 4 USB 2.0 ports, 1 LAN port, 3 audio jacks
• On-Board connectors    1 x Front panel connector, 1 x speaker connector, 1 x Front panel audio connector (2 x 5pin),
• 4 x USB 2.0 ports, 4 x SATA 3Gb/s (SATAII) ports, 1 x 4pin CPU fan connector, 1 x SYS fan connector,
• 1 x 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector, 1 x 3pin clear CMOS header
• Slots    1 PCI Express x16 slot, 1 PCI Express x1 slot
• Country of Origin    China
